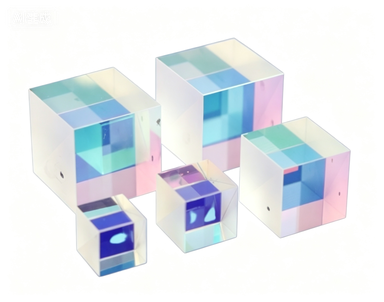

Our polarizing beamsplitter (PBS) cube is composed of a pair of precision high-tolerance right-angle prisms cemented together. One of the prisms has a partially reflective metallic-dielectric coating applied to its hypotenuse. The incident light should enter the prism with the coated hypotenuse in order to minimize power passing through the optical cement. The PBS can split the unpolarized beam into two orthogonal, linearly polarized components. P-polarized light is transmitted, whiles-polarized light is reflected, both with negligible absorption. The extinction ratio is better than 1000:1 for beamsplitters made with N-BK7 glass, and better than 100.1 for beamsplitters made with UV fused sllica. These cubes are recommended for use in pulsed laser systems and for purifying polarization in multimode high-power lasers.
APPLICATIONS
WSS
Laser applications
Fiber optical communication systems
40 G/100 G components
POLARIZING BEAMSPLITTER CUBE
Dimensions
Common Specification
|
Material |
N-BK7 or UV fused silica |
|
Typical Dimension |
3 mm x3 mm x3 mm, 3.2 mm x3.2 mmx 3.2 mm |
|
Flatness |
λ/4@632.8nm |
|
Surface Quality |
(scratch/dig) Better than 40-20 |
|
Beam Deviation |
<3 arc minute |
|
Incidence Angle |
0+/-3 |
|
Principal Transmittance |
Tp>95%, Ts< 1% |
|
Principal Reflectance |
Rs> 99%, Rp< 5% |
|
Coating |
"Polarizing beamsplitter coating on hypotenuse;AR coating on other input and output faces" |
Other sizes, wedged angles, diameters, and coatings are also available upon request
Ready to Get Started? Inquiry by email: rose@mt-optics.com
Related Products

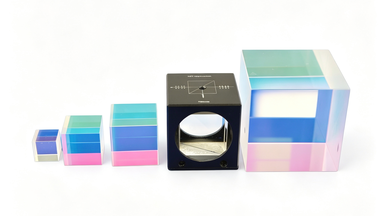

Non Polarizing Beamsplitter Cube (NPBS)

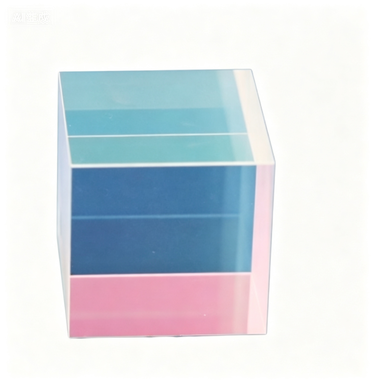

Optical Isolator

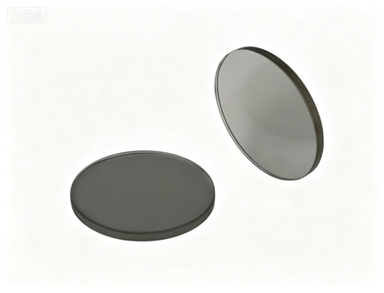

Thin Film Linear Polarizer
About Us

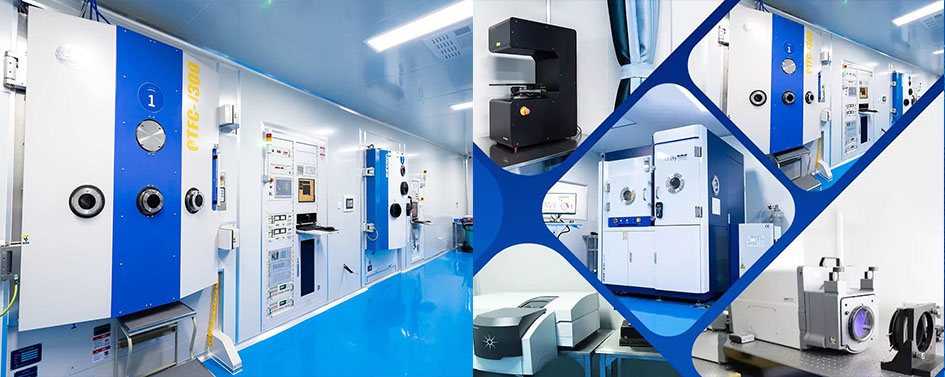

MT-Optics,Inc.was established in 2008, We are a private factory specializing of the export of multi-element optical compoment for imaging systems, and optomechanical equipment. MT-Optics owns advanced fabricating machine,including Optorun coating machine, CNC Grinding&polishing,High Speed &precision polishing,Ultrasonic cleaner,etc.And inspection instruments, like Zygo, Cary 5000, Trioptics Prism Master 0.5" prism measurement system and so on.Provider for high technology OEM customers.
